LE-PC300R
LE-PC300R is a Windows® software which allows you to remotely control the protocol analyzer from your PC and utilize the analyzer measurement data on your PC. You can also read the measurement log file of the communication analyzer sent by e-mail or USB flash memory and analyze it on a PC or convert it to text/CSV format.
Applicable analyzers: LE-3500XR, LE-2500XR, LE-3500R, LE-2500R, LE-1500R, LE-110SA, LE-120SA, LE-3500, LE-2500, LE-1500
- Multiple analyzers can be controlled at the same time.
- Easy operation of key emulation
- Communication log can be continuously saved up to 256Gbyte by the remote monitor function.
- Various kinds of display depending on the protocols such as SDLC, X.25, PPP, and MODBUS
- Collective conversion into Text format/CSV format
- Automatic switching of Japanese/English
"LE-PC300R (light edition)" which has some limitations can be downloaded free of charge.
Supports multi-link and remote measurement via USB connection, Wi-Fi connection, etc.
Depending on the communication analyzer to be connected, USB connection, Wi-Fi connection, COM port connection, wired LAN connection via LAN ⇔ serial converter can be used. You can remotely control multiple analyzers by linking them from a PC at the same time and execute measurement.
Connection setting
Wi-Fi connection is available via an access point or by direct connection.
It also supports display of measurement data in the memory card and data conversion.
[ In addition to the real-time data transfer, copying by external memories is also available. ]
< Multiple display example >
Emulates the operation of the analyzer on the personal computer
A key emulation function is provided to reproduce the familiar analyzer display and operation on a PC. It also supports tap operation of a communication analyzer with a touch panel, allowing remote control as if operating the analyzer directly from a PC.
[ Key emulation display example ]
Remote monitor function
The remote monitor function captures the log data from operating analyzer and records it on its hard disk or SSD, and at the same time it displays the data on the PC's screen. Depending on the purpose of use and the capacity of the storage, you can specify the size of each log file by "Block size" and the maximum number of log files by "Maximum block count". When you want to stop the logging automatically at the specified capacity you can use fixed buffer mode, and when you want to log the data continuously keeping its latest log data you can use the ring buffer mode.
Block size 1M/2M/4M/8M/16M/32M/64M/128M bytes
Maximum number of blocks 2 to 2048
Synchronizes the configuration with the analyzer
The configuration and the analyzer setting set on the PC software can be synchronized with that of the analyzer in remotely connected.
Communication setting
Record setting
Simulation setting
Large screen and various kinds of display
Raw data display, Protocol translation display, Logic analyzer wave display are available and switchable.
ASYNC normal display
ASYNC frame display
PPP translation display
HDLC translation display
Modbus translation display
I2C normal display
I2C frame display
SPI normal display
SPI frame display
Logic analyzer display mode
BERT mesurement mode
Collective conversion of measured data into Text format/CSV format
You can collectively convert the measured data which is taken by remote monitoring or stored in the memory card attached to the analyzer into text file or CSV file.
You can convert the data in the memory card attached to the analyzer into a text file or CSV file.

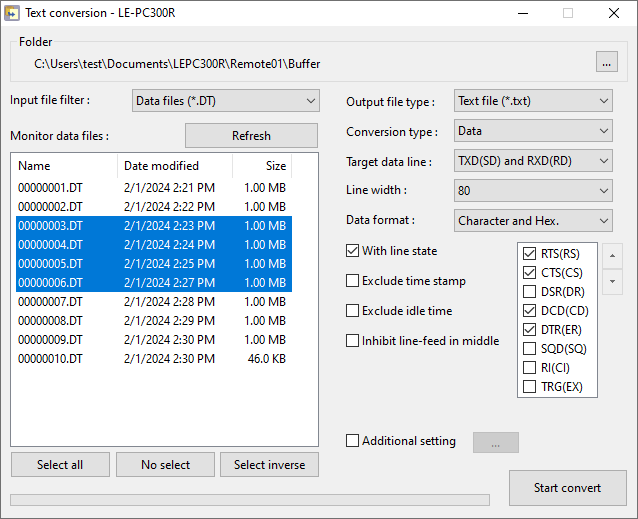

Text conversion setting
CSV conversion example of BERT
Automatic switching of Japanese/English
Language automatically switches depending on the language of Windows® OS (Japanese or English). This facilitates introduction of the software to development bases outside Japan.
English
Japanese
