OP-SB89 LAN (supporting POE) Expansion Board

Outline

Image of Use

OP-SB89 is an expansion board for Ethernet LAN, inserting into a slot of battery drive portable data communication analyzer (LE-8200A/LE-8200). It supports the PoE (Power Over Ethernet) standard, and able to analyze the communications and power consumption at the same time.

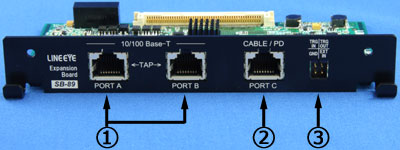

LAN measurement board

(1) PORT A, B On-line monitor, PoE measurement, Statistic analysis (Fail-safe TAP for PoE devices), PING function, Port blinking function (LAN port of10BASE-T/100BASE-TX)
(2) PORT C Cable test, PSE detection. Dummy PD (counterpart of PoE devide) port
(3) External input/output Automatically stops the on-line monitor when external signal connected to the TRG IN terminal becomes “L” level.
Line state sheet for LAN signals
Line state sheet
for OP-SB89
LED Monitor PING
Link/Act Port A ON - Link-up
OFF No data Link-down
Blinking Receiving RX data Transmit/Receive data
Link/Act Port B ON - Link-up
OFF No data Link-down
Blinking Receiving TX data Transmit/Receive data
100Base-TX ON 100Base-TX connection
OFF 10Base-T connection
Blinking Mismatched speed*1 -
Ful Duplex ON - Full Duplex connection
OFF Half Duplex connection
Blinking Collision
PoE TAP type A ON PoE Alternative A detected -
OFF PoE Alternative A not detected
PoE TAP type B ON PoE Alternative B detected
OFF PoE Alternative B not detected
PoE Port C ON PSE(Power Source Equipment) detected
OFF - -
*1 Indicates that speed of the TX(transmission) is different from the that of RX(reception).

Monitor Function

It monitors Ethernet LAN and records the 10BASE-T/100BASE-TX data frames in the capture memory up to 100M bytes. It displays data on the LCD or filter only specific frames. It has the Fail-safe TAP no to affect the communications between the devices when power shortage of analyzer.

<Filter setting>
<Monitoring>
REPEAT online mode for continuous recording [New function]

Beside "ONLINE" mode, the new“REPEAT” mode can display measured data at real time and save data into the external memory automatically.

<Menu display of new version>
< REPEAT online mode >

[ Modes ]

Monitor Mode ONLINE REPEAT
Measuring Stop measuring after saving data in the 100M byte Buffer memory. Use the two-divided Buffer memory alternately.
Real time display No Yes
Auto save No Record continuously into the external memory up to 64G byte.
Capturing Capability High Not good as "ONLINE" mode because it adds the processes of dispaying and saving data.
Use for Record all frames for high volume of data. Record continuously for small volume of data.
Data Use

Measured data can be converted into pcap format by the utility software (lepcapcvt), and analyzed using the Ethereal and Wireshark (free software).
Furthermore, data can be used in the PC by transferring it via the external memory card.

*1 A USB cable is not provided with the product. Prepare a USB cable if you intend to use USB connection.
The LE2-8V AUX cable provided to the analyzer is available in the case of serial connection.
*2 LE-8200A/LE-8200 can save data in the CF card.
An interface to read the CF card is required on the PC side.
*3 LE-8200A can save data in the USB flash drive.
< Screen of utility software "lepcapcvt" >
< Example of using data on the Wireshark >

Statistic Function

Communication traffic and numbers of error packets can be calculated and displayed in graphs. <Graph display>
<Counter display>
Total Total reception frames
Good Normal frames
Broadcast Broadcast
Multicast Multicast
Pause Pause frames
Length1 Numbers of packets of 0 – 63 byte
Length2 64 byte packets
Length3 Numbers of packets of 65 – 127 byte
Length4 Numbers of packets of 128 – 255 byte
Length5 Numbers of packets of 256 – 511 byte
Length6 Numbers of packets of 512 – 1023 byte
Length7 Numbers of packets of 1024 – 1518 byte
Length8 Numbers of packets of 1519 byte or more
CRC error CRC error
Alignment error Alignment error
Fragment error Fragment error

PoE Measurement

OP-SB89 has the isolation transformer for PoE and connects not only the common LAN cables but also the LAN cables for PoE devices. It is able to use as the Power logger of PoE and also communication analysis.
PoE measurement data can be saved in the external memory as CSV format file and used by the table calculation software on the PC.

It can measure the Voltage, Current, Power consumption of PD devicek and record mas 4 million of data and tell the statement (OK/NG). It is useful for the devices when it is hard to get their power source, such as Network cameras, access points for wireless LAN, IP telephones.

<Connection image of using Dummy port>
<PoE measurement>
<PoE graph>
<PoE dump display>

PSE Judgment

Port C has the dummy PD function. When the PSE device(supporting PoE) is connected to the port C, analyzer will be the PD device and measure the power consumption from the PSE devices.

<Connection image>
<Indicator of power supply>
<Connection image of power consumption using port A/B/C>

By connecting PSE device to port A(or B) and connecting port C and port B (orA), analyzer will be the PD device and able to analyze the power consumption.

Cable test

One of the LAN ports will be the cable test port and able to check the LAN cables. It is able to measure the 3-120m LAN cable by TDR method. It also finds the short circuit, split pair and snapping, and displays on the LED. <Cable test>
<NG>
<NG>

PING function, Port-blinking function

<Connection image of Port-blinking>

OP-SB89 has the PING function for linking test, and port-blinking function to find the specific cable to easily fin the cable from the large numbers of other cables. This is not only useful for developing LAN devices but also for installing the LAN devices in the building.

<PING display>
<Connection image of port-blinking function>

Print function

Measured data (PoE Overview) can be printed in following format.

LAN frame
*=[LE-8200]=====[2013-02-19 12:02:00]=*
* Model     : LE-8200                 *
* Version   : 1.02                    *
* Extension : OP-SB89                 *
* Serial No.: ********                *
* Start time: 2013-02-19 12:00:00     *
* Stop time : 2013-02-19 12:01:00     *
*-------------------------------------*
*  PROTOCOL: LAN                      *
*=====================================*

---Date---------Time------------Source----------Destination-----Protocol---
2010-07-30 10:23:34.849000 202.93.70.237     192.168.0.7       TCP
2010-07-30 10:23:34.851000 202.93.70.237     192.168.0.7       TCP
2010-07-30 10:23:34.852000 202.93.70.237     192.168.0.7       TCP
2010-07-30 10:23:34.852000 192.168.0.7       202.93.70.237     TCP
2010-07-30 10:23:34.867000 202.93.70.237     192.168.0.7       TCP
2010-07-30 10:23:34.867000 202.93.70.237     192.168.0.7       TCP
2010-07-30 10:23:34.867000 202.93.70.237     192.168.0.7       TCP
2010-07-30 10:23:34.867000 192.168.0.7       202.93.70.237     TCP
2010-07-30 10:23:34.962000 192.168.0.7       202.93.70.237     TCP
2010-07-30 10:23:34.981000 192.168.0.7       202.93.70.237     TCP
2010-07-30 10:23:34.981000 192.168.0.7       202.93.70.237     TCP
2010-07-30 10:23:34.981000 192.168.0.7       202.93.70.237     TCP
2010-07-30 10:23:34.994000 202.93.70.237     192.168.0.7       TCP
2010-07-30 10:23:34.994000 202.93.70.237     192.168.0.7       TCP
2010-07-30 10:23:34.994000 202.93.70.237     192.168.0.7       TCP
2010-07-30 10:23:34.995000 192.168.0.7       202.93.70.237     TCP
2010-07-30 10:23:35.129000 192.168.0.7       192.168.0.1       UDP
2010-07-30 10:23:35.135000 192.168.0.1       192.168.0.7       UDP
2010-07-30 10:23:35.136000 192.168.0.7       202.93.70.236     TCP
2010-07-30 10:23:35.150000 202.93.70.236     192.168.0.7       TCP
2010-07-30 10:23:35.151000 192.168.0.7       202.93.70.236     TCP
2010-07-30 10:23:35.160000 192.168.0.7       202.93.70.236     TCP
2010-07-30 10:23:35.174000 202.93.70.236     192.168.0.7       TCP
2010-07-30 10:23:35.175000 202.93.70.236     192.168.0.7       TCP
2010-07-30 10:23:35.175000 202.93.70.236     192.168.0.7       TCP
2010-07-30 10:23:35.175000 192.168.0.7       202.93.70.236     TCP
LAN detail
*=[LE-8200]=====[2013-02-19 12:02:00]=*
* Model     : LE-8200                 *
* Version   : 1.02                    *
* Extension : OP-SB89                 *
* Serial No.: ********                *
* Start time: 2013-02-19 12:00:00     *
* Stop time : 2013-02-19 12:01:00     *
*-------------------------------------*
*  PROTOCOL: LAN                      *
*=====================================*

---Date---------Time------------Source----------Destination-----Protocol---
2010-07-30 10:23:34.849000 202.93.70.237     192.168.0.7       TCP
 Ethernet II
  Destination: 00-19-21-1D-E6-A8
  Source: 00-A0-DE-3F-B0-9C
  Type: IP (0x0800)
 Internet Protocol
  Version: 4
  Header length: 20
  Service type: 0x00
  Total length: 175
  Identification: 0xcbb9 (52153)
  Flags: 0x00
  Fragment offset: 0
  Time to live: 47
  Protocol: TCP (0x06)
  Header checksum: 0xed95 - correct
  Source: 202.93.70.237
  Destination: 192.168.0.7
 Transmission Control Protocol
  Source port: http (80)
  Destination port: 1170
  Sequence number: 812010905
  Acknowledgment number: 2736423844
  Data offset: 20
  Flags: -AP--- (0x18)
  Window: 6432
  Checksum: 0xc653 - correct
 Data
  Length: 135
 000:  FB E0 FF 46 38 B2 ED 9D EF 6D 2F 9B E3 E1 D6 B4
 010:  AE B7 ED 69 E1 8D 3C DD E0 0E 36 A8 65 8D 6C 46
 020:  EF 7A CE BA 06 79 9C C3 ED EB 5B 9F 9A D8 54 AB
 030:  38 B9 2D 4E 72 6F 03 C4 DC 30 07 3A CC 2F 2D 42
 040:  48 07 FD CD 85 9E 74 F9 3C 2E F0 EE 3B AF AF E9
 050:  48 2F 74 04 44 0D F5 96 EB 4D 7C 44 37 B2 D4 26
 060:  E0 15 4B 3A E0 C4 54 C3 40 A5 0C E0 E4 D4 75 8C
 070:  A4 19 F0 8A 9A 5E 47 A3 A2 70 AD 05 70 8F BB DC
 080:  E7 AE 82 10 00 00 3B
PoE text
*=[LE-8200]=====[2013-02-19 12:02:00]=*
* Model     : LE-8200                 *
* Version   : 1.02                    *
* Extension : OP-SB89                 *
* Serial No.: ********                *
* Start time: 2013-02-19 12:00:00     *
* Stop time : 2013-02-19 12:01:00     *
*-------------------------------------*
*  PROTOCOL : IEEE 802.3af            *
*       TYPE: Altanative A            *
*        PSE: Port A                  *
*        PIN: 1,2 Pin                 *
*=====================================*

------TM-----------POWER-------VOLTAGE------CURRENT-------
0,000,004.565         --         +1.2          --
0,000,004.570         --         +0.9          --
0,000,004.575         --         +0.5          --
0,000,004.580       +6.3        +46.1        +137
0,000,004.585       +6.4        +46.1        +139
0,000,004.590       +6.5        +46.1        +143
0,000,004.595       +1.8        +46.9         +40
0,000,004.600       +2.0        +46.9         +43
0,000,004.605       +1.9        +47.1         +42
0,000,004.610       +0.4        +47.2         +10
0,000,004.615       +0.8        +47.0         +18
0,000,004.620       +3.0        +46.6         +66
0,000,004.625       +0.5        +47.1         +12
0,000,004.630       +0.3        +47.2          +8
0,000,004.635       +0.7        +47.1         +16
0,000,004.640       +2.9        +46.7         +64
0,000,004.645       +4.0        +46.7         +86
0,000,004.650       +0.3        +47.2          +7
0,000,004.655       +0.7        +47.1         +16
0,000,004.660       +3.2        +46.6         +69
0,000,004.665       +1.8        +47.0         +39
0,000,004.670       +1.8        +46.9         +40
PoE CSV

913,--,+1.2,--
914,--,+0.9,--
915,--,+0.5,--
916,+6.3,+46.1,+137
917,+6.4,+46.1,+139
918,+6.5,+46.1,+143
919,+1.8,+46.9,+40
920,+2.0,+46.9,+43
921,+1.9,+47.1,+42
922,+0.4,+47.2,+10
923,+0.8,+47.0,+18
924,+3.0,+46.6,+66
925,+0.5,+47.1,+12
926,+0.3,+47.2,+8
927,+0.7,+47.1,+16
928,+2.9,+46.7,+64
929,+4.0,+46.7,+86
930,+0.3,+47.2,+7
931,+0.7,+47.1,+16
932,+3.2,+46.6,+69
933,+1.8,+47.0,+39
934,+1.8,+46.9,+40
935,+1.8,+46.9,+39
936,+1.7,+46.9,+38
937,+1.8,+46.9,+39
938,+1.7,+46.9,+37
939,+1.6,+46.9,+36
940,+1.7,+46.9,+37
941,+1.7,+46.9,+38

Specifications

Interface Port A,B: 10Base-T/ 100Base-TX (IEEE802.3) , PoE (IEEE 802.3af) Measurement
Port C:Cable Test Port, Dummy PD port to detect the PSE
Monitor Function Measure/record the LAN frames by TAP connection of A/B ports.*1
Frame size: 60-2047byte,
Time stamp (13 digit, resolution: 1ms, 100μs, 10μs, 1μs,) ,
It is possible to have the auto stop for full memory (ONLINE mode), and continuous recording (REPEAT mode)*2, External signal trigger,
Conversion software for Ethereal / Wireshark (.pcap format) .*3
Recording Frame Max. 48,000-1,388,000 frames (equivalent 100M byte)*4
Display Frame/Translation/Dump (in HEX) Display
Translatable protocol:IPv4, ARP, ICMP, TCP, UDP, DHCP
Filter Function Monitor only specified frames.
Layer 2:type number, MAC address
IPv4:protocol number, IP address, Subnet Mask
Auto save Auto save function can save log data into the external memory automatically (REPEAT moe only).
Retrieval Function Retrieve the specified frame and display/count
Layer 2:type number, MAC address
IPv4:protocol number, port number, IP address, Sub-net Mask
Statistic Function Calculate 2 kinds of frame counters at the same time with specified interval (1-240 minute) , and display in graph.
Display all frame counters at real time,
Frame counter: total received frames, normal frames, Broadcast, Multicast, pause, error frames (CRC, Aliment, Fragment), numbers of frames of each byte length (0-63, 64, 65-127, 128-255, 256-511, 512-1023, 1024-1518, 1519-),
Max. calculation number: 4,294,967,295 (each)
PoE Measurement
Function
Measure/record the power consumption/Voltage/Current/Power(Alternative A/B, power supply port, polarity), OK/NG statement with specified interval (1ms-1s, 10 kinds)
Max recording time : 400 million, Voltage: 0-60V (±1% F.S.), Current: 0-380mA (±2% F.S.), Normal/Dump/Graph Display, Able to print the reports, Able to saving as CSV file
PSE Detection Detect the PSE connection to the Port C (Dummy PD port of class 1) and light the LED.
Cable Test Function Measure the cable length (3-120m) /short circuit/split pair detection*5
Method of calculation of length: TDR, Margin of error: ±1m (less than 3-20m) /±5% (more than 20m)*6,
Cable Calibration and set the parameters.
PING Function Transmit the PING commands for about 30,000 times to the PortA/B*7, and display how many time/how long it replies.
Able to specify the interval of transmitting commands (10ms, 50ms, 100ms, 500ms, 1s) , time out (10ms, 50ms, 100ms, 500ms, 1s, 5s, 10s), payload length (0-900)
Port Blink Function Repeat linking/cutting link on Port A/B*7 for 1s interval. The LED for connected HUB will be blinking and easily find the target port.
Accessories Interface expansion board, line state sheet C, LAN cable, Utility CD
*1 Port A/B has the fail-safe TAP and will not affect the communications between the target devices even when power shortage of analyzer.
*2 REPEAT mode uses the two-divided Buffer memory alternately to record data continuously. It can display measured data at real time and save data into the external memory automatically (auto save). Capturing capability is not good as the "ONLINE" mode because "REPEAT" mode adds the processes of displaying data and saving data. "REPEAT" mode is available form Ver1.01.
*3 Conversion software for “pcap” format can be used in the Windows® 2000/XP/Vista/7. External memory and PC with memory interface are necessary to transmit/receive the measured data.
*4 12byte of addition information will be added for each frame.
*5 Cannot display the cable map because of open measurement method.
*6 It is the standard margin of error for category 5e cable. For some cables, it may be necessary to set the cable calibration.
*7 When starting the cable test, Port A/B will be the LAN port instead of TAP connection.
