LINEEYE Co., Ltd. released a new firmware (V1.15) for the line monitors LE-8500X/LE-8600X series. If you have been using the ex-version, please update it to the latest version.

1. Added I3C Monitor Function (LE-8500X-RT/LE-8500XR-RT/SB-R2TS1)


   It is now possible to monitor I3C communication, which is expected to become a next generation standard for inter-chip communication. I3C is a communications standard that extends I2C, and is capable of high-speed communication at clock speeds of up to 12.5MHz using a two-wire system while maintaining backward compatibility with I2C. As with I2C measurements, monitoring is performed by connecting to the LE-8500X(R)-RT's TTL (1.8V/2.5V/3.3V/5V level) measurement port.

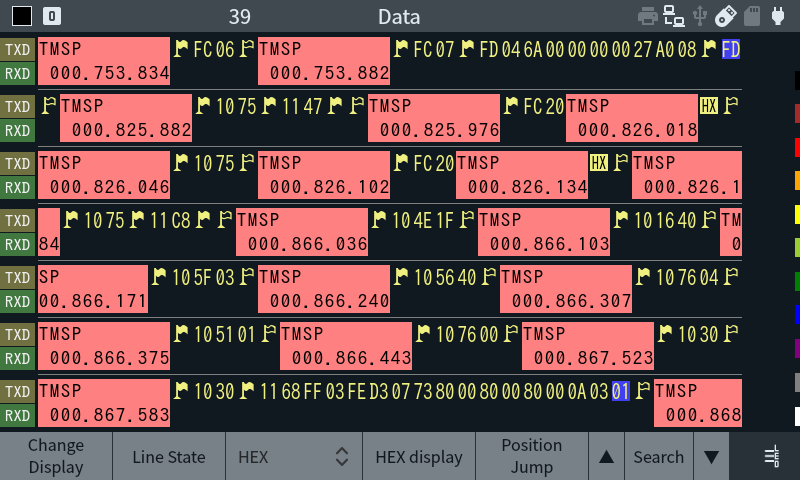

   [ Monitor Screen Example ]

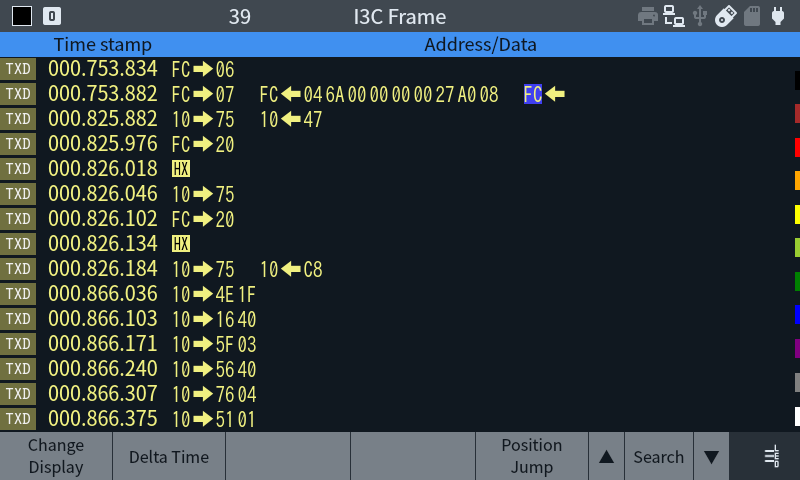

   [ Frame Display Screen Example ]


   SDR communication monitoring and target reset, HDR exit, and HDR restart pattern detection are possible.

   ※ Simulation data transmission and HDR communication monitoring are not supported.
2. Added J1939 translation function (SB-C2AN)


   J1939 support has been added to the SB-C2AN's CAN/CAN FD translation function. Unlike the DBC translation function, there is no need to prepare a translation definition file. Approximately 4,000 types of SPNs can be translated and displayed.

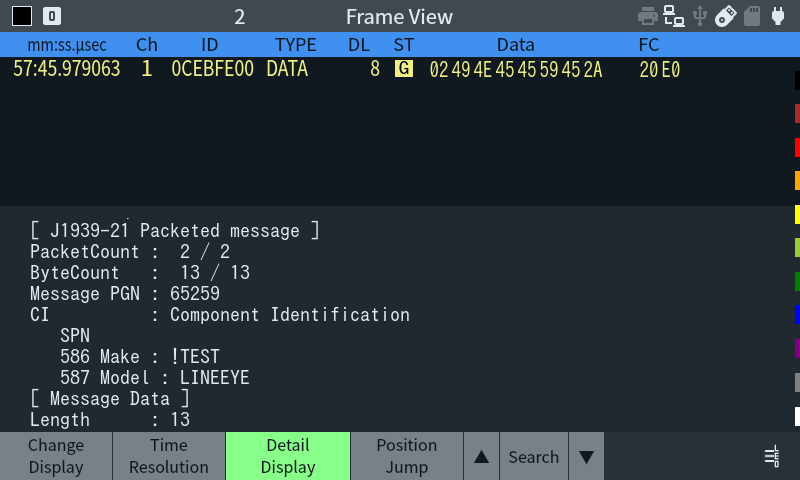

   [ Detailed Translation Display Example ]


   It also supports translation display of TP (Transport Protocol), which transmits more than 9 bytes of data using multiple CAN frames, and J1939-22, an extension of CAN FD.

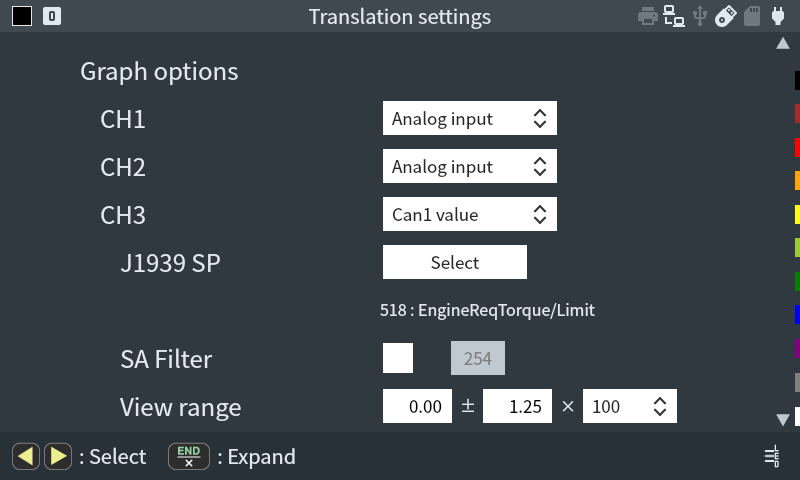

   [ Graph Drawing Settings Screen ]

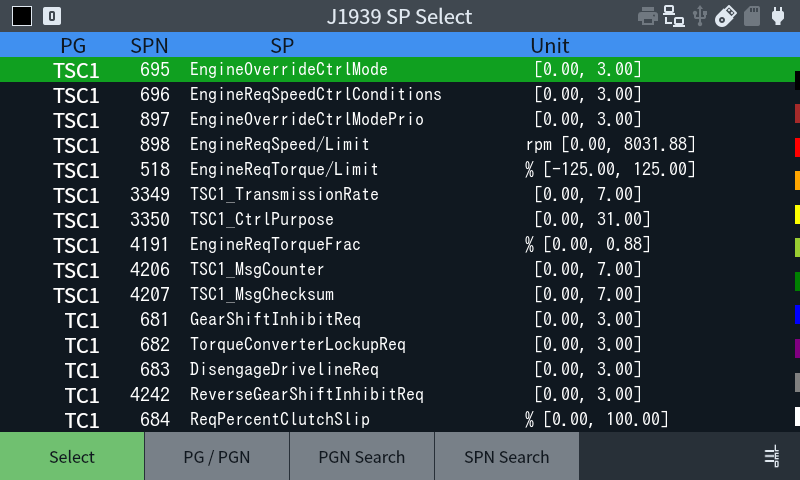

   [ Graph Drawing Target Selection Screen ]


Similar to the DBC translation function, you can display up to eight selected translation results in real time graphs along with analog measurement values.

* Variable-length data, multi-frame data, and string data are not supported for graph display (only detailed translation display is supported).


3. Other Updates


   - Minor bug fixes for LE-8500X-RT/LE-8500XR-RT (SB-R2TS1)

Version History

The new firmware set can be downloaded free of charge from the LINEEYE website.
For information on how to update the firmware, please check the instruction manual of the analyzer.
